This collection supports the Electrical system by covering the electrical control portion of the windshield wiper subsystem. These components manage the flow of electrical current between the ignition circuit, protective circuit breaker, dashboard switch, and the wiper motor that drives the windshield wiper linkage.

This category applies to 1932-1972 Passenger, 1939-1970 Mercury, 1932-1979 Pick Up vehicles.

Within the wiper system, electrical control begins at the dashboard-mounted wiper motor switch. When the driver activates the switch, current flows from the ignition circuit through the wiring harness to the switch and then onward to the wiper motor. This electrical path allows the driver to start or stop the motor that powers the wiper linkage assembly.

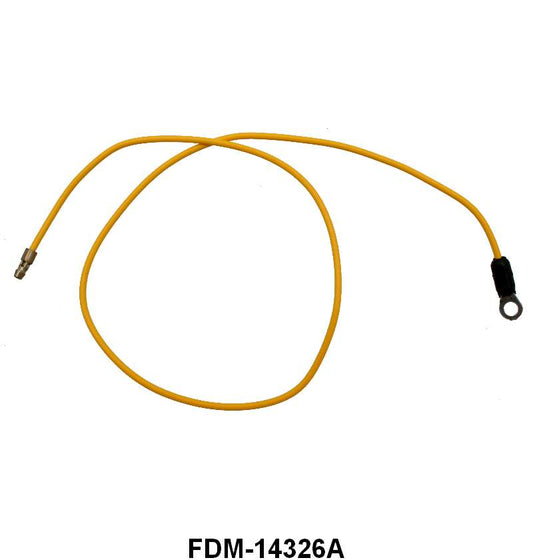

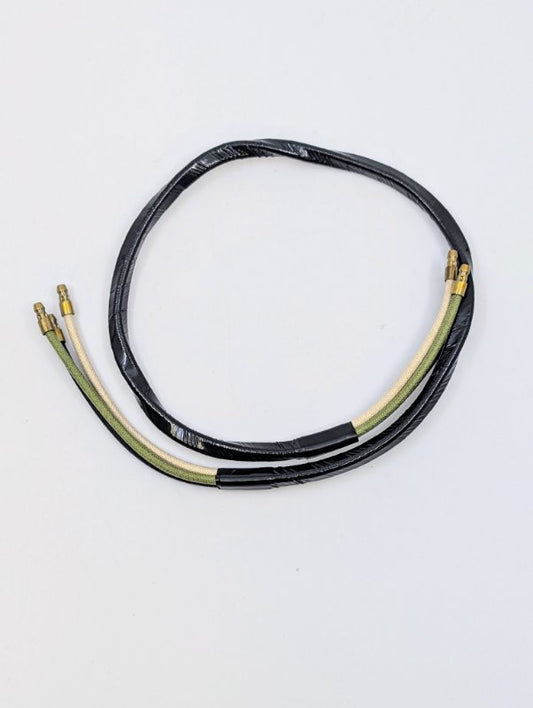

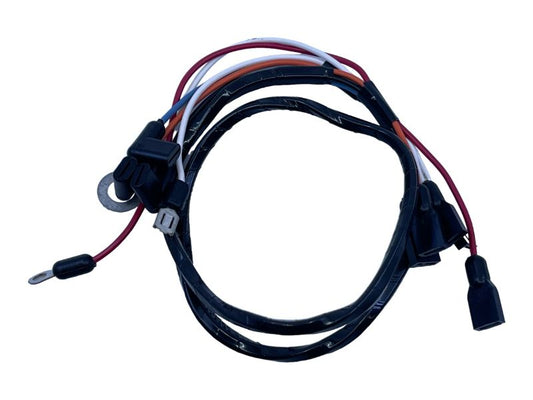

The components in this collection support that electrical control path. A wiper motor switch provides the manual control point. Dedicated wiring such as the wiper switch to ignition switch wire supplies power from the ignition circuit. The wiper switch to circuit breaker wire routes power through the protective breaker, which helps protect the motor circuit from overload conditions. The wiper switch to wiper motor wire completes the path to the motor itself.

In many restoration projects, degraded wiring or a worn switch causes intermittent wiper operation long before the motor itself fails.

Technical & Fitment Section

The wiper system operates as a controlled electrical circuit that links the ignition power source, protective circuit breaker, dashboard switch, and the wiper motor. When the ignition is on, electrical current becomes available to the wiper circuit through the ignition switch wiring.

The wiper motor switch acts as the operator control point. Moving the switch closes the circuit and allows current to travel from the ignition feed through the switch and onward to the wiper motor. The motor then drives the mechanical linkage that moves the windshield wiper arms across the glass.

The circuit breaker connection protects the motor and wiring from overload conditions by interrupting current if the circuit experiences excessive draw.

Because the system relies on several short wiring runs between these components, wiring condition plays a major role in reliability. A deteriorated switch wire, loose connector, or poor terminal connection often causes intermittent motor operation or a wiper system that stops under load.

Fitment will vary by model year.

Evaluate the switch, ignition feed wire, and motor supply wire together when diagnosing electrical wiper faults.
