Within the Cooling, Heating system, radiator fan shrouds and related components control how air is pulled through the radiator core at low vehicle speeds. This subsystem is not decorative—it manages airflow efficiency, especially at idle and in traffic where natural airflow is limited. Without a properly fitted shroud, the fan pulls air from the path of least resistance rather than across the full radiator surface.

This category includes the Fan Shroud, Fan Shroud Bracket, and Radiator Shroud Upper Panel, each working together to position and stabilize the fan-to-radiator air flow. The shroud creates a controlled tunnel that forces air through the radiator fins, while brackets secure alignment relative to the radiator and fan blade depth. Upper panels close off gaps at the top of the radiator support, preventing air bypass.

Factory configurations varied by engine size, radiator dimensions, and core support design. Fitment will vary by model and year. Maintaining correct spacing between the fan blade and shroud opening is critical—too far forward or rearward reduces airflow efficiency and can introduce clearance issues under load.

A properly restored shroud system ensures the fan does its job where it matters most: pulling air through the radiator, not around it.

The Fan Shroud acts as an airflow director. It centers the fan within a defined opening so that air is drawn evenly across the radiator core rather than from open engine bay space. Missing or damaged shrouds typically show up as overheating at idle but stable temperatures at highway speed—a classic airflow imbalance.

The Fan Shroud Bracket determines positioning. If brackets are bent, missing, or incorrectly installed, the shroud can sit off-center relative to the fan. This creates uneven airflow and increases the risk of fan blade interference under engine movement. On older restorations, it’s common to find improvised mounting that compromises alignment.

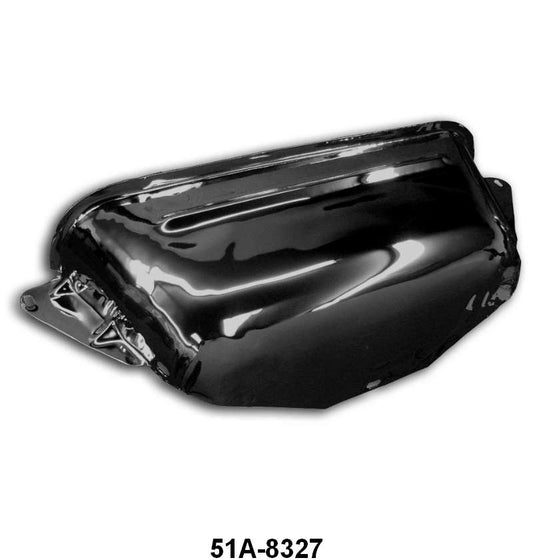

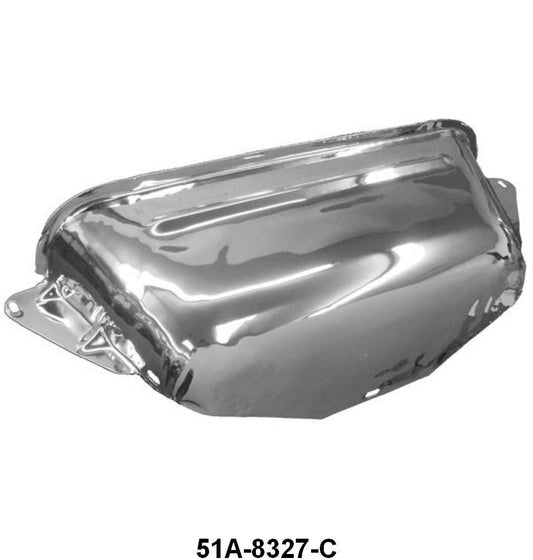

The Radiator Shroud Upper Panel seals the upper gap between the radiator and core support. Without it, air pulled by the fan escapes over the top instead of being forced through the radiator. This reduces cooling efficiency even if the shroud itself is present.

Wear realities show up as cracked mounting points, warped shrouds, or missing hardware after decades of service and engine removal cycles. Even slight misalignment changes how air is distributed across the radiator surface.

One thing learned the hard way: if the shroud doesn’t sit where the factory intended, the fan ends up working harder while cooling less.
